Sacrificial Zinc Anodes
As a trusted manufacturer of high-purity anti corrosion Zinc anodes, we deliver certified corrosion protection solutions for ship hulls, ballast tanks, and offshore structures across the UAE and across the globe.
Zinc Anode Benefits
Consistent, even consumption, easier life-cycle planning
Reliable performance in seawater and brackish conditions
Pre-packaged options for fast, clean soil installations
High 95% current efficiency for cost-effective protection
What Are Zinc Anodes and Why They Are Used in Cathodic Protection?
Zinc is the proven solution for salt water (seawater), produced brines, and low resistivity soils. Known for its reliability, it provides consistent galvanic protection for ship hulls, tanks, boats and underground infrastructure where stable performance is critical.
Sacrificial zinc anodes operate by creating a galvanic cell with the steel structure, functioning most effectively in conductive electrolytes. They are specifically engineered for low-resistivity environments to corrode sacrificially and prevent rust. At BSS Technologies, we manufacture high-purity zinc alloys in our UAE foundry. Because zinc is a non-sparking metal, it is also the safest option for hazardous areas like cargo tanks, providing predictable protection across marine and industrial applications.
.png&w=3840&q=75)
The Galvanic Principle: Why Zinc is Effective
Zinc possesses a natural potential of -1.05V relative to Ag/AgCl. When coupled with steel, this potential difference drives a continuous protective current. This self-regulating mechanism naturally adjusts to salinity or temperature changes, ensuring constant protection without external power or monitoring.
Key Technical Factors for Anode Selection
Selecting the right anode requires precise engineering. We design the optimal mass and geometry based on your asset's current demand and coating condition to guarantee the required design life.
Strict adherence to quality standards.
Geometry selected to optimize current output.
Cores: Flat bar, rod, pipe, or bolt-on types.
Total mass calculated for your specific Design Life.
Your corrosion challenges are our expertise,
Trust the industry leader in cathodic protection
Types of Zinc Anodes We Manufacture & Supply
From standard hull anodes to specialized ribbon coils, we manufacture a complete array of zinc anodes solutions for every needs.
Technical Specifications
BSS Tech zinc anodes are engineered for reliable performance in demanding environments. They are manufactured under strict quality control to ensure consistent chemical composition and electrochemical output.
Applicable Environments:
Ideal for seawater, produced brines, and low-resistivity soils (<1000 Ω-cm). For soils, we supply pre-packaged anodes with gypsum/bentonite backfill.
High-Temperature Zinc Anodes:
Specialized alloy formulations available for ambient temperatures exceeding 50°C.
Open-Circuit Potential:
-1.05 V (relative to Ag/AgCl).
Current Capacity:
780 Ah/kg.
Galvanic Efficiency:
Typically, 90–95%.
QA & Compliance:
Fully compliant with ASTM B418 (Type I & II) and MIL-A-18001K.
Element | ASTM B 418 Type I & MIL A-18001K (%) | ASTM B 418 Type II (%) | High Temperature (%) |
|---|---|---|---|
Aluminium | 0.10 – 0.50 | 0.005 max | 0.10 – 0.25 |
Cadmium | 0.025 – 0.07 | 0.003 max | 0.001 max |
Lead | 0.006 max | 0.003 max | 0.006 max |
Iron | 0.005 max | 0.0014 max | 0.002 max |
Copper | 0.005 max | 0.002 max | 0.001 max |
Magnesium | 0.05 – 0.15 | ||
Others (each) | 0.02 max | ||
Others (Total) | 0.05 max | 0.10 max | |
Zinc | Balance | Balance | Balance |
Element | ASTM B 418 Type I & MIL A-18001K (%) | ASTM B 418 Type II (%) | High Temperature (%) |
|---|---|---|---|
Aluminium | 0.10 – 0.50 | 0.005 max | 0.10 – 0.25 |
Cadmium | 0.025 – 0.07 | 0.003 max | 0.001 max |
Lead | 0.006 max | 0.003 max | 0.006 max |
Iron | 0.005 max | 0.0014 max | 0.002 max |
Copper | 0.005 max | 0.002 max | 0.001 max |
Magnesium | 0.05 – 0.15 | ||
Others (each) | 0.02 max | ||
Others (Total) | 0.05 max | 0.10 max | |
Zinc | Balance | Balance | Balance |

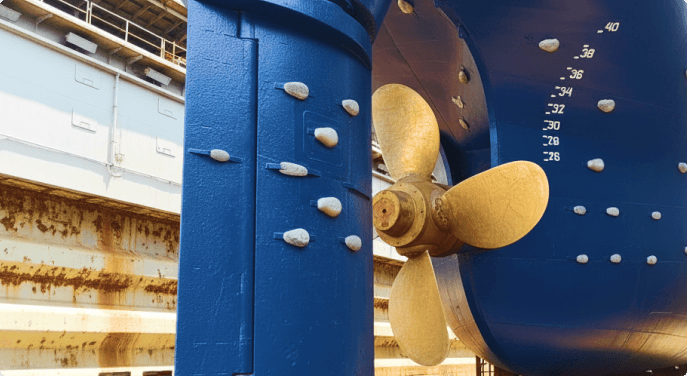

Applications of Zinc Anodes
.png&w=3840&q=75)
Areas
Ship Hulls & Rudders
Ballast & Cargo Tanks
Subsea Pipelines
Buried Pipelines
Offshore Platforms & Jackets
Jetties & Quay Walls
Storage Tank Bottoms
AC Mitigation & Grounding
Pipeline Casing Spaces
Heat Exchangers & Condensers
Pipeline Road Crossings
Well Casings
Why Choose BSS Tech as Your Preferred Zinc Anode Supplier?
Direct supply from our specialized foundry.
Strict quality control to global standards.
Adequate stock and short lead times.
Custom casting for specific project needs.
We control every step of production at our in-house foundry to guarantee anode purity and performance. Our inventory strategy ensures adequate stock is always available to meet urgent project timelines. Whether you need standard sizes or custom designs, we deliver certified protection directly to your site.
